A boat fender is a cushioning device placed between a vessel and a dock, pier, or another ship. Its primary purpose is to absorb kinetic energy during berthing and mooring. Without fenders, the repeated impact of a moving vessel against a fixed structure would cause serious damage to both the hull and the dock.
Marine fenders are essential safety equipment in every port and harbor worldwide. They protect vessels, infrastructure, and cargo from collision damage. Whether you operate a small fishing boat or manage a large commercial terminal, choosing the right fender system directly impacts operational safety and cost efficiency.
In this guide, we explain how marine fenders work, explore the main types available, and provide practical advice on selecting the right fender for your specific application.
Table of Contents
How Do Boat Fenders Work?
Boat fenders work on a simple principle: they convert kinetic energy into deformation energy.
When a vessel approaches a dock or another ship, it carries significant kinetic energy. The fender compresses upon contact and absorbs this energy. It then distributes the reaction force across a wider area. This process prevents concentrated impact damage to the hull or quay structure.
The amount of energy a fender can absorb depends on several factors:
- Fender material — rubber, foam, or composite compounds each offer different energy absorption rates
- Fender size — larger fenders handle greater berthing energy
- Internal pressure — pneumatic fenders use air compression for energy absorption
- Compression ratio — how much the fender deforms relative to its original size
According to PIANC (World Association for Waterborne Transport Infrastructure) guidelines, fender systems must be designed to absorb the full berthing energy of the design vessel under the most unfavorable conditions. The berthing energy calculation considers vessel displacement, approach velocity, berthing angle, and environmental factors such as wind and current.
Main Types of Boat Fenders by Material
Marine fenders are broadly classified into three categories based on their construction material. Each type serves different operational needs and environments.
Rubber Fenders
Rubber fenders are the most widely used type in commercial ports worldwide. They are manufactured from natural rubber, synthetic rubber, or a blend of both. Rubber compounds provide excellent energy absorption, durability, and resistance to marine conditions.
Rubber fenders can be further divided into two main groups: floating rubber fenders (pneumatic and foam-filled) and fixed rubber fenders (mounted directly on dock structures).
Pneumatic Fenders (Yokohama Type)
Pneumatic fenders are inflatable rubber structures that use compressed air to absorb berthing energy. They are also known as Yokohama fenders, named after the city where they were first developed.
How they work: Multiple layers of synthetic tire cord reinforce the rubber body. When compressed, the air inside the fender absorbs energy elastically. Fenders over 1,500 mm in diameter are typically equipped with safety valves to prevent over-pressurization.
Key specifications:
- Diameter range: 400 mm to 4,500 mm
- Length range: 500 mm to 12,000 mm
- Operating pressure: 50 kPa or 80 kPa (two standard grades per ISO 17357-1:2014)
- Energy absorption: varies by size, from 10 kJ to over 3,000 kJ
Pneumatic fenders come in two main configurations:
| Configuration | Description | Best For |
|---|---|---|

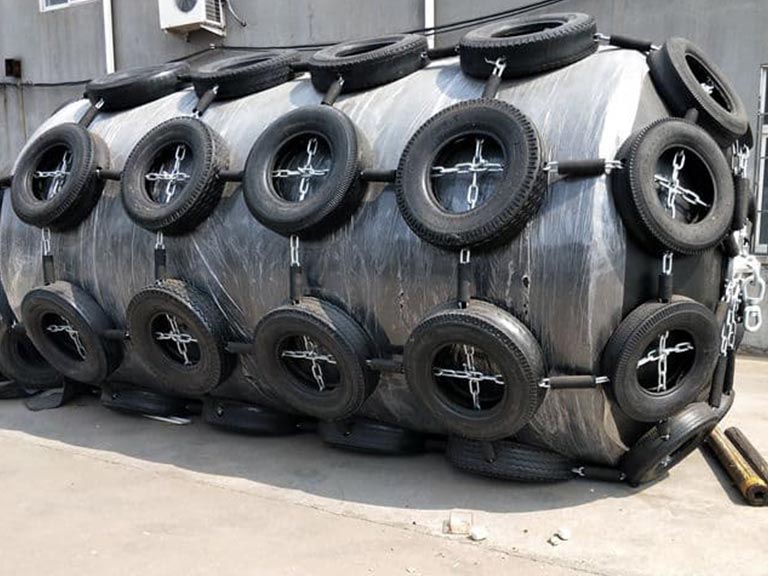

| Chain-Tire Net (CTN) | Wrapped in a protective net of used tires connected by galvanized or stainless steel chains | Permanent installations, high-traffic ports, harsh conditions |
| Sling Type | Suspended by wire rope slings attached to reinforced flanges | Temporary berthing, ship-to-ship transfer, quick repositioning |
Typical applications: Ship-to-Ship (STS) transfer operations, FSRU/LNG terminal berthing, ports with extreme tidal variations, and temporary berthing scenarios.
Super Cone Fenders (SCN)
Super cone fenders feature a tapered rubber body that provides stable performance even at high compression angles (up to 15–20°). This design prevents the fender from buckling under oblique loads.
Key advantages:
- Consistent reaction force across compression range
- Suitable for high-velocity berthing (above 150 mm/s)
- Available in energy ratings from 5 kJ to over 2,500 kJ
Cone fenders are commonly installed on container terminals, bulk cargo wharves, and RoRo berths where vessels approach at varying angles.
Arch Fenders
Arch fenders have a simple curved profile that mounts directly onto the quay wall. They require no additional supporting structure.
Key advantages:
- Zero maintenance — no moving parts
- Compact design suitable for small to medium berths
- High shear and abrasion resistance
These fenders are ideal for fishing harbors, ferry terminals, and inland waterway berths where vessel sizes are moderate, and budget constraints apply.
Cylindrical Fenders
Cylindrical fenders are the simplest and most economical fixed fender type. They consist of a solid rubber cylinder bolted to the dock face.
Available in three standard sizes: small (under 200 mm diameter), medium (200–500 mm), and large (over 500 mm). They suit a wide range of vessels and are easy to install and replace.
Other Fixed Rubber Fender Types
| Type | Key Feature | Best Application |
|---|---|---|
| Cell Fenders (SCK) | Modular closed-cell design, high energy capacity | Large panel installations, deep-water berths |
| Leg Fenders | Compact modular units | Berths with limited space |
| Parallel Motion Fenders | Vertical movement, up to 60% lower reaction force | Heavy-duty terminals requiring minimal hull pressure |
| Sliding (SISO) Fenders | Replaceable wear pads on guide rods | High-frequency berths with easy maintenance needs |
| Extruded Fenders | Continuous profile, cut to any length | Continuous wharf protection, pontoons |
Foam Filled Fenders
Foam filled fenders use a closed-cell polyethylene foam core wrapped in a reinforced polyurethane elastomer skin. Unlike pneumatic fenders, they do not rely on air pressure and therefore cannot deflate or sink — even if the outer skin is punctured.
Key advantages:
- Maintenance-free — no inflation monitoring required
- Unsinkable under any damage condition
- Long service life (typically 10–15 years with minimal care)
- Available in sling-mounted and net-protected versions
Typical applications: Permanent ship-to-ship transfer stations, offshore platforms, naval bases, and any location where maintenance access is limited.
Composite Fenders
Composite fenders combine multiple materials to achieve specific performance characteristics. The most common example is the tugboat fender.
Tugboat Fenders
Tugboat fenders endure the most severe wear in the marine industry. Tugs make contact with vessels and dock structures hundreds of times per day. Their fenders must withstand constant abrasion, compression, and shear forces.
Tugboat fenders are available in various cross-sectional profiles: cylindrical, conical, keyhole, M-shaped, and W-shaped. Each profile distributes contact forces differently depending on the tug’s operating method (push, pull, or escort).
These fenders use heavy-duty rubber compounds reinforced with steel or synthetic fiber layers for maximum durability.
Boat Fenders by Installation Location
Fenders can also be classified by where they are installed:
Vessel-Mounted Fenders
These fenders are permanently attached to the ship’s hull or bow. Tugboat fenders are the primary example. Because vessel-mounted fenders operate in harsher conditions than dock fenders — including constant wave action and repeated impacts — they require more durable materials and construction.
Quay (Dock) Fenders
Quay fenders are installed on the dock structure to protect both the berth and the docking vessel. Most commercial port fenders fall into this category. Options include pneumatic fenders, cone fenders, arch fenders, and cell fenders, depending on the berth design and vessel class.
The primary function of all fender types — whether vessel-mounted or dock-mounted — is the same: absorb berthing energy and reduce reaction forces to protect ships, cargo, crew, and port infrastructure.
How to Choose the Right Boat Fender: A Practical Selection Guide
Selecting the correct fender requires careful engineering analysis. The wrong choice can result in hull damage, dock deterioration, or cargo loss. Here are the key factors to evaluate:
Step 1: Calculate Berthing Energy
Berthing energy depends on:
- Vessel displacement (DWT or full-load displacement in tonnes)
- Approach velocity (typically 0.10–0.25 m/s for large vessels)
- Berthing angle (usually 5°–15°)
- Environmental conditions (wind, current, wave action)
PIANC guidelines provide standardized formulas for calculating design berthing energy. The fender’s rated energy absorption must exceed this value with an appropriate safety factor (typically 1.5× to 2.0×).
Step 2: Evaluate Operating Conditions
| Factor | Considerations |
|---|---|
| Tidal range | Ports with extreme tidal variations (>4 m) benefit from floating pneumatic or foam fenders |
| Weather exposure | Open-sea berths require fenders rated for higher wave loads |
| Vessel types | Mixed-use berths need versatile fender systems |
| Berthing frequency | High-traffic ports need low-maintenance fender types |
| Water depth | Shallow drafts may limit fender options |
Step 3: Compare Fender Performance
| Fender Type | Energy Absorption | Reaction Force | Maintenance | Lifespan | Relative Cost |
|---|---|---|---|---|---|
| Pneumatic (CTN) | High | Low | Medium (pressure checks) | 8–12 years | Medium |
| Pneumatic (Sling) | High | Low | Low | 6–10 years | Low–Medium |
| Foam Filled | High | Low–Medium | Very Low | 10–15 years | Medium–High |
| Super Cone | Very High | Medium | Low | 15–25 years | High |
| Arch | Low–Medium | Low | None | 15–20 years | Low |
| Cylindrical | Low | Low | None | 10–15 years | Very Low |
| Cell (SCK) | High | Medium | Low | 15–25 years | High |
Step 4: Verify Standards Compliance
Ensure your fender supplier provides certification to the relevant international standards:
- ISO 17357-1:2014 — Performance requirements for floating pneumatic fenders
- PIANC Guidelines — Fender system design methodology
- OCIMF MEG4 — Mooring equipment guidelines for oil/gas terminals
Conclusion
Marine fenders are critical safety equipment that protect vessels, port infrastructure, and cargo during every berthing operation. From simple cylindrical dock bumpers to advanced pneumatic floating fenders, each type serves specific operational needs.
Choosing the right fender requires understanding your vessel size, berthing conditions, and maintenance capabilities. A properly engineered fender system reduces repair costs, minimizes operational downtime, and keeps crews safe.
At Henger Shipping Supplies, we have been designing and manufacturing marine fenders, rubber fenders, and marine airbags for over 20 years. Our engineering team provides free project consultations to help you select the optimal fender system for your specific requirements. Contact us today for a customized quote.
Frequently Asked Questions
What is a boat fender used for?
A boat fender absorbs the impact energy when a vessel contacts a dock, pier, or another ship. It prevents damage to the hull, dock structure, and cargo. Fenders are used in every type of berthing operation — from small marina slips to large commercial terminals.
What is the difference between a pneumatic fender and a foam filled fender?
Pneumatic fenders use compressed air inside a reinforced rubber body to absorb energy. They offer excellent performance but require periodic pressure monitoring. Foam filled fenders use a solid closed-cell foam core instead of air. They are maintenance-free and unsinkable, even if the outer skin is damaged. Pneumatic fenders are generally more cost-effective for large-scale operations, while foam fenders are preferred where maintenance access is limited.
How do I determine the correct fender size for my vessel?
Fender sizing requires a berthing energy calculation based on your vessel’s displacement, approach speed, berthing angle, and local environmental conditions. PIANC guidelines provide the standard methodology. As a rule of thumb, larger vessels with higher approach speeds require fenders with greater energy absorption capacity. We recommend consulting a fender manufacturer’s engineering team for precise sizing.
How long do marine fenders last?
Service life varies by type and operating conditions. Pneumatic fenders typically last 8–12 years. Foam filled fenders can serve 10–15 years or more. Fixed rubber fenders such as cone or cell types often exceed 15–20 years with proper maintenance. Factors that shorten fender life include UV exposure, chemical contact, excessive compression, and inadequate maintenance.
Can fenders be used for Ship-to-Ship (STS) transfer operations?
Yes. Pneumatic fenders and foam filled fenders are specifically designed for STS transfer operations. They float on the water surface between two vessels and absorb lateral forces during cargo transfer. CTN and sling-type pneumatic fenders are the most common choices for STS operations in the oil, gas, and bulk commodity sectors.
