Sling Pneumatic Fender

Reliable Ship Protection with Enhanced Durability & Flexibility

The Henger Sling Pneumatic Fender is an important marine safety device. It is designed to cushion impacts during berthing. It acts as a barrier between ships, or between ships and marinas. It uses compressed air to absorb collision energy, which lessens potential damage to structures and hulls. The sling suspension system is lighter and easier to maneuver than traditional chain and tyre net-covered wings, which also works for many marine operations, from ship-to-ship transfers to emergencies.

The Sling-type fenders play a key role in protecting marine safety and infrastructure. It is a valuable marine protection device. It is useful in harbors and marinas with changing tides or where precise mooring is needed.

Main Characteristics

The Sling Type Pneumatic Fender always be carried with the vessel for use at home, at sea and in foreign ports as utility fenders. Sling Type fenders design ensures high energy absorption with little reaction force can absorb and get rid of energy during mooring key features easily . Diffierent with pneumatic rubber chain and tyres net systems,Sling Type Fender are lighter and more adaptable. They are easier and quicker to deploy. This is especially true in situations where rapid response or flexible placement is needed.

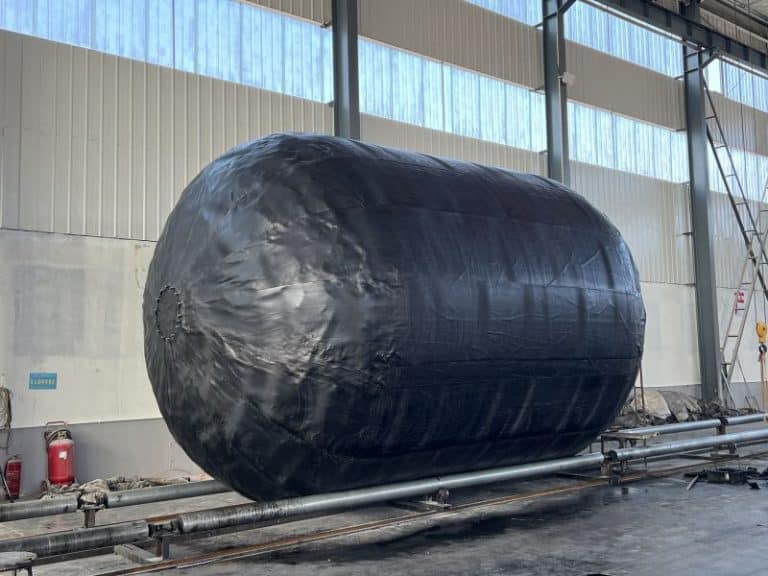

Large black sling fenders designed to absorb high energy while the ship is at anchor
Black pneumatic fenders placed outdoors, ready to be used for offshore operations, with flexible placement for rapid deployment

Types and Applications

Pneumatic rubber fenders are made of durable and durable materials, providing excellent investment returns. This design can withstand harsh marine environments, resulting in low maintenance costs. This gives you confidence in ensuring reliability, with consistent performance regardless of age or extreme temperatures, even when subjected to excessive loads, to protect the vessel and mooring facilities.

The suspension mudguard is lightweight and small in size, making it easy to deploy and eliminating gender restrictions for management personnel. Very suitable for ship to ship combat, flexibility and speed are key. After use, the storage of the fenders is also very convenient.

The Yokohama type inflatable fender structure is sturdy, with a longer service life and product lifespan. More suitable for long-term ship to berth and ship to dock operations, with stronger wear resistance and environmental friendliness.

Large, rugged pneumatic rubber fenders with suspension system are designed for durability in marine applications

The characteristics of different design structures and styles of inflatable rubber fenders meet the diverse protection needs of different marine environments and play a crucial and reliable role in ensuring mooring safety and ship safety. The Henger team is committed to developing and producing customized products that meet different environmental needs, providing strong protection for maritime safety.

Technical specifications & performance

Same as Yokohama type fender, sling pneumatic fender must also be strictly complied with the ISO 17357:2014 standard. This is crucial to ensure that pneumatic fenders comply with global safety, performance, and durability standards for offshore operations. The ISO 17357:2014 standard specifies specific requirements for materials, durability, and performance to ensure that sling rubber fender can absorb a significant amount of impact energy.

Henger sling type pneumatic fender 100% comply with the ISO 17357:2014 standard. And in addition, specified production or test requirement standards will be accepted if end users/navy/designated government terminals need . Henger team has been continuously striving and working to maintain maritime mooring safety and port docking safety.

Nominal size diameter x length(MM)Initial internal pressure (kPa)Guaranteed energy absorption (GEA)Reaction force at GEA deflection(R)Hull pressure (Internal pressure) at GEA deflection (P
Minimum value at deflection 60±5% kJTolerance±10 % kNReference value kPa
500 x 100050664132
600 x 100050874126
700 x 15005017137135
1000 x 15005032182122
1000 x 20005045257132
1200 x20005063297126
1350 x 250050102427130
1500 x 300050153579132
1700 x 300050191639128
2000 x 350050308875128
2500 x 4000506631381137
2500 x5500509432019148
3300 x 45005011751884130
3300 x 65005018143015146
3300 x 106005030675257158
4500 x 90005047525747146
4500 x 120005064737984154
Nominal size diameter x length(MM)Initial internal pressure(KPA)Guaranteed energy absorption (GEA)Reaction force at GEA deflection (R)Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJTolerance±10% kNReference valuekPa
500 x 100080885174
600 x 1000801198166
700 x 15008024180177
1000 x 15008045239160
1000 x20008063338174
1200 x 20008088390166
1350 x 250080142561170
1500 x 300080214761174
1700 x 300080267840168
2000 x 3500804301150168
2500 x 4000809251815180
2500 x 55008013172653195
3300 x 45008016402476171
3300 x 65008025323961191
3300 x 106008042816907208
4500 x 90008066337551192
4500 x 1200080903710490202

Sling Type Pneumatic Fenders Selection Guide

When selecting a sling-type pneumatic fender, it is vital to consider the following factors:
Size: The size of the fender should be selected based on the size of the vessel and the type of mooring operation. Larger vessels or operations involving significant energy absorption may require larger fenders.
Pressure: The internal pressure of a fender affects its performance characteristics. They are usually 50 kPa or 80 kPa. The choice depends on the needed energy absorption and reaction force.
Application: Consider the marine environment. It includes ship-to-ship, ship-to-mooring, or ship-to-jetty operations. Also, consider the tides.
Understanding size and performance parameters:Different sizes offer different performances in terms of energy absorption and reaction forces. Matching fender size to needs is crucial. It ensures safety during berthing.

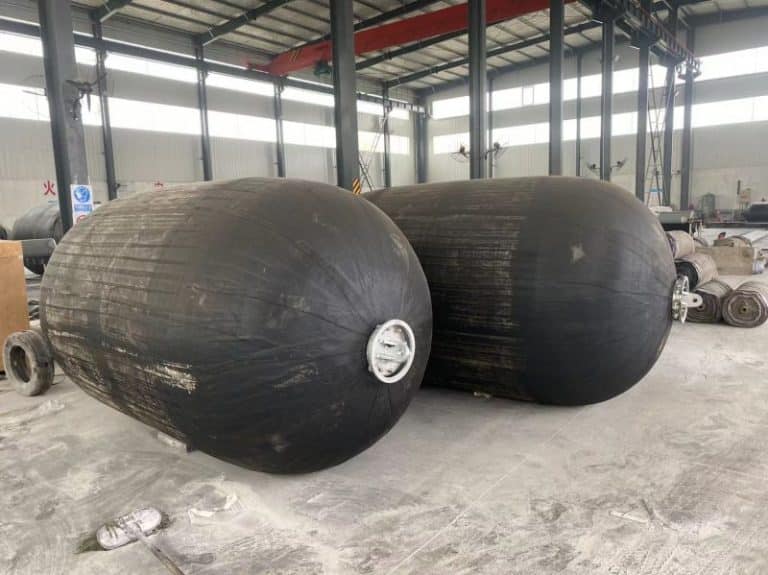

Two sling-type pneumatic fenders ready for use in a variety of marine applications, adaptable for ship-to-ship and mooring operations

Installation & Maintenance Guide

Easy Inflating And Installation: Henger will provide a guide to the needed inflation. Follow this guide to ensure the wing reaches its best performance. Correct installation (e.g. fixing the wing at the correct height and position) is essential.

Maintenance: Checking for damage often, keeping inflation at recommended levels, and cleaning to remove marine organisms will help the fender last longer.

Durability and performance: Check for wear and tear often. This is especially important if the fender is used a lot in harsh conditions. And follow a maintenance schedule. This will address issues promptly.

Sling pneumatic fenders are ruggedly constructed for use on heavy-duty vessels and are easy to maintain.

Case studies & industry applications

The customer at Port X, Malaysia, highly recognized the pneumatic fenders our company delivered. They were of the sling type. This was during a challenging ship-to-ship (STS) operation. The fenders faced big tides and choppy waters. But, they absorbed lots of energy and had low reaction forces. They protected two large ships berthed side-by-side well.

Large Spherical Sling Pneumatic Fenders for Ship-to-Ship Operations in a Variety of Conditions
Sling Pneumatic Fenders feature a ruggedized design for reliable performance in offshore energy absorption tasks
